UPDATE 2025: code has since been edited, a follow-up to this page will be written at a later date, to address ikHandles and the proper invocations to create them, instead of lazy node spawning

https://github.com/STUAAAAAAAAAART/mayaNodeToPython

see also applied uses in my other repo about rigging modules/sections:
https://github.com/STUAAAAAAAAAART/StuMayaRigToys

Converting a selection of nodes in the maya node editor to python commands

Problem: writing python code to codify a node network takes a long time due to:

having to look up the same documentation for the same core command over and over again for each invocation (muscle memory still isn’t there yet; also code paranoia and oversimulation in my head)
increased effort as number of nodes increase

Goal: writing python code to write python code

Considerations and Future Improvements:

nodes with complex attributes like blendMatrix
- in manual service, a new target has to be made in the attribute editor panel before connecting an attribute to it
attributes with pre-assigned values instead of an incoming connection, especially composeMatrix and other maths and utility nodes (e.g. quick linear scalars)
- for pre-calculated transforms: it’s best to address this after the code printing step
complex nodes, especially IK solvers and constraints
- very especially the message attribute, will have to skip those
code adjustment friendliness
- input nodes/objects are held by a python list, so that i can reorder or rename a few things without having to worry too much about program flow or find-and-replace-and-sanityCheck, a step towards a peace of mind
printing the output to a file
- currently copying off the script editor, but large networks could easily flood the console with lots of text

script

import maya.cmds as mc
import maya.api.OpenMaya as om2

"""
playlist while coding:
	https://www.youtube.com/watch?v=smyqDlcHE14
	https://www.youtube.com/watch?v=1bEv74JrHQo
"""

# selection phase: get items
activeSelection = om2.MGlobal.getActiveSelectionList()
# [2022: NOT IN USE] convert shortName string from getSelectionStrings to longnames (just because)
# checkList = mc.ls(activeSelection.getSelectionStrings(), long=True) # -> list : ["longName", ... ]
	# line not in use because mc.listConnections() does not return longNames.
		# the flag to return longNames exist from 2023 onward

# detection phase: get all connections strictly within selection
checkList = activeSelection.getSelectionStrings() # -> list : ["shortName", ... ]

nodeList = []
addAttrList = []
connectionList = []
nodeCounter = 0
for node in checkList:
	# write createNode commands
	nodeList.append(f'nodeList[{nodeCounter}] = mc.createNode("{mc.nodeType(node)}", n="{node}", skipSelect = True)')

	# check for user-defined attributes and write addAttr commands
	checkAttrUD = mc.listAttr(node, userDefined=True)
		# WARNING: returns noneType if list is empty
	if checkAttrUD: # if not None, basically
		for attr in checkAttrUD:
			# query custom attr type
			checkAttrType = mc.attributeQuery(attr, n=node, attributeType = True)
			if checkAttrType in ["float","double","byte","short","long","char"]:
			# query attribute attributes (:shrug:)
				flagString = ""
				# default value
				flagString += f", defaultValue = {mc.attributeQuery(attr, n=node, listDefault = True)[0]}"
				# soft range (attribute sliders)
				if mc.attributeQuery(attr, n=node, softMinExists = True):
					flagString += f", hasSoftMinValue = True, "
					flagString += f", softMinValue = {mc.attributeQuery(attr, n=node, softMin = True)}"
				if mc.attributeQuery(attr, n=node, softMaxExists = True):
					flagString += f", hasSoftMaxValue = True, "
					flagString += f", softMaxValue = {mc.attributeQuery(attr, n=node, softMax = True)}"
				# hard range (hard limits)
				if mc.attributeQuery(attr, n=node, minExists = True):
					flagString += f", hasMinValue = True, "
					flagString += f", minValue = {mc.attributeQuery(attr, n=node, softMin = True)}"
				if mc.attributeQuery(attr, n=node, minExists = True):
					flagString += f", hasMaxValue = True, "
					flagString += f", maxValue = {mc.attributeQuery(attr, n=node, softMin = True)}"
				# hidden?
				holdBool = mc.attributeQuery(attr, n=node, hidden = True)
				flagString += f", hidden = {'True'*holdBool}{'False'*(not holdBool)}"
				# connection settings
				holdBool = mc.attributeQuery(attr, n=node, readable = True)
				flagString += f", readable = {'True'*holdBool}{'False'*(not holdBool)}"
				holdBool = mc.attributeQuery(attr, n=node, writable = True)
				flagString += f", writable = {'True'*holdBool}{'False'*(not holdBool)}"
				# animatable?
				holdBool = mc.attributeQuery(attr, n=node, keyable = True)
				flagString += f", keyable = {'True'*holdBool}{'False'*(not holdBool)}"

				# write attAttr command
				addAttrList.append( f'mc.addAttr("{node}", longName = "{attr}", attributeType = "{checkAttrType}" {flagString})')
			else:
				# complex attribute, manual consideration required for now
					# it should be surmountable within mc., but that's for another time as other utilities come
				# TODO: other types:
					# enum
						# listEnum = True
					# compound
						# listChildren = True
						# listSiblings = True
				addAttrList.append(f'# "{checkAttrType}" type: {node}.{attr}')

	# query outgoing connections

	queryConnections = mc.listConnections(node, s=False, c=True,  d=True, p=True )  # -> list : ["shortName_from.attr", "shortName_to.attr", ... , ... ]
		# downstream command
	for i in range(int(len(queryConnections)*0.5)): # -> "shortName_from.attr"
		# note: script has been working with shortnames the whole time,
		# ensure node names are all consistently shortNames or longNames (and not a mix of both)
		if queryConnections[i+i+1].split('.')[0] in checkList: # <- "shortName_to.attr"
			# downstream node is in selection scope, append [input, output] to list
			holdIndex = checkList.index(queryConnections[i+i+1].split('.')[0])

			fromNode = 'f"{' + f"nodeList[{nodeCounter}]" + '}' + f'.{queryConnections[i+i  ].split(".")[1]}"'
			#           f"{      nodeList[      n      ]     }      .                         attribute     "
			# f"{nodeList[n]}.attribute"

			toNode   = 'f"{' + f"nodeList[{holdIndex  }]" + '}' + f'.{queryConnections[i+i+1].split(".")[1]}"'
			#           f"{      nodeList[      n      ]     }      .                         attribute     "
			# f"{nodeList[n]}.attribute"



			# write connectAttr commands
			connectionList.append(f'mc.connectAttr({fromNode}, {toNode}) # {queryConnections[i+i]} -> {queryConnections[i+i+1]}')

	# next node
	nodeCounter += 1

# print phase: print all commands for creation and connections
# TODO: write text to file (honestly copying from the script editor will do for now)


print("\n# scripterStu: start print\n")

print("import maya.cmds as mc")
print("import maya.api.OpenMaya as om2\n")

print("activeSelection = om2.MGlobal.getActiveSelectionList()")

print("\n# create nodes\n")
print(f"nodeList = list(range({len(checkList)}))\n")

for printOut in nodeList:
	print(printOut)
print("\n# custom attributes\n")
for printOut in addAttrList:
	print(printOut)
print("\n# connect attributes\n")
for printOut in connectionList:
	print(printOut)

print(f"\n# scripterStu: print done\n")

the next step after getting the printout, would be to adjust the lines where specific nodes would be retreived from a selection and not created

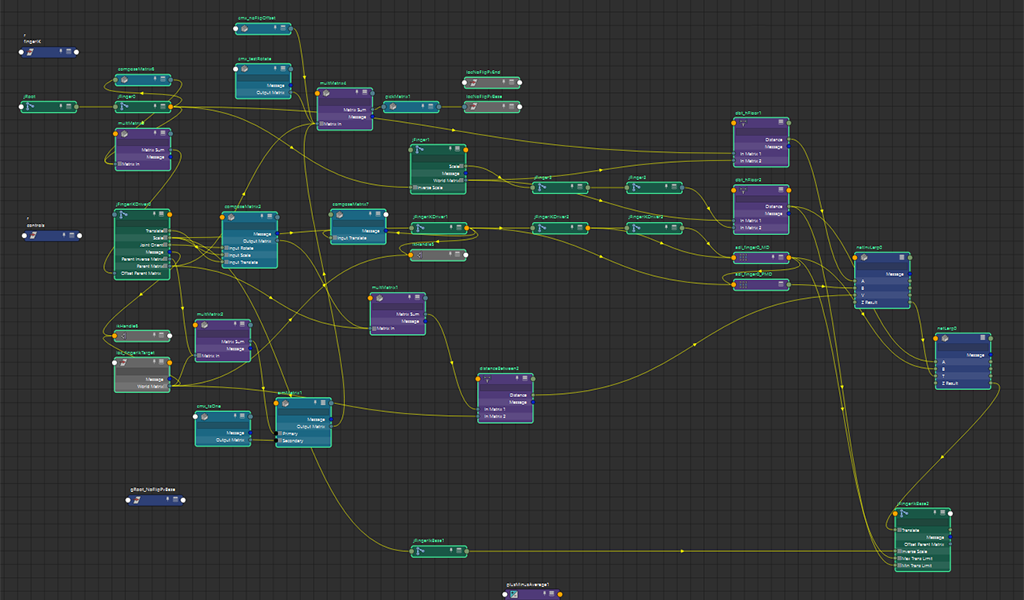

so selecting these and running the script:

alt text

will result in the following output, which is most of the legwork done

example output

# scripterStu: start print

import maya.cmds as mc
import maya.api.OpenMaya as om2

activeSelection = om2.MGlobal.getActiveSelectionList()

# create nodes

nodeList = list(range(35))

nodeList[0] = mc.createNode("composeMatrix", n="cmx_noFlipOffset", skipSelect = True)
nodeList[1] = mc.createNode("composeMatrix", n="cmx_testRotate", skipSelect = True)
nodeList[2] = mc.createNode("multMatrix", n="multMatrix4", skipSelect = True)
nodeList[3] = mc.createNode("joint", n="jFinger0", skipSelect = True)
nodeList[4] = mc.createNode("joint", n="jRoot", skipSelect = True)
nodeList[5] = mc.createNode("composeMatrix", n="composeMatrix6", skipSelect = True)
nodeList[6] = mc.createNode("transform", n="locNoFlipPvEnd", skipSelect = True)
nodeList[7] = mc.createNode("pickMatrix", n="pickMatrix1", skipSelect = True)
nodeList[8] = mc.createNode("transform", n="locNoFlipPvBase", skipSelect = True)
nodeList[9] = mc.createNode("multMatrix", n="multMatrix3", skipSelect = True)
nodeList[10] = mc.createNode("joint", n="jFinger1", skipSelect = True)
nodeList[11] = mc.createNode("joint", n="jFinger3", skipSelect = True)
nodeList[12] = mc.createNode("joint", n="jFinger2", skipSelect = True)
nodeList[13] = mc.createNode("joint", n="jFingerIKDriver0", skipSelect = True)
nodeList[14] = mc.createNode("joint", n="jFingerIKDriver1", skipSelect = True)
nodeList[15] = mc.createNode("composeMatrix", n="composeMatrix3", skipSelect = True)
nodeList[16] = mc.createNode("distanceBetween", n="dbt_hFloor2", skipSelect = True)
nodeList[17] = mc.createNode("joint", n="jFingerIKDriver2", skipSelect = True)
nodeList[18] = mc.createNode("composeMatrix", n="composeMatrix7", skipSelect = True)
nodeList[19] = mc.createNode("joint", n="jFingerIKDriver3", skipSelect = True)
nodeList[20] = mc.createNode("distanceBetween", n="dbt_hFloor1", skipSelect = True)
nodeList[21] = mc.createNode("network", n="netInvLerp0", skipSelect = True)
nodeList[22] = mc.createNode("addDoubleLinear", n="adl_finger0_MD", skipSelect = True)
nodeList[23] = mc.createNode("ikHandle", n="ikHandle5", skipSelect = True)
nodeList[24] = mc.createNode("addDoubleLinear", n="adl_finger0_PMD", skipSelect = True)
nodeList[25] = mc.createNode("multMatrix", n="multMatrix1", skipSelect = True)
nodeList[26] = mc.createNode("multMatrix", n="multMatrix2", skipSelect = True)
nodeList[27] = mc.createNode("ikHandle", n="ikHandle6", skipSelect = True)
nodeList[28] = mc.createNode("network", n="netLerp0", skipSelect = True)
nodeList[29] = mc.createNode("transform", n="loc_fingerIkTarget", skipSelect = True)
nodeList[30] = mc.createNode("distanceBetween", n="distanceBetween2", skipSelect = True)
nodeList[31] = mc.createNode("aimMatrix", n="aimMatrix1", skipSelect = True)
nodeList[32] = mc.createNode("composeMatrix", n="cmx_tzOne", skipSelect = True)
nodeList[33] = mc.createNode("joint", n="jFingerIkBase2", skipSelect = True)
nodeList[34] = mc.createNode("joint", n="jFingerIkBase1", skipSelect = True)

# custom attributes

mc.addAttr("netInvLerp0", longName = "A", attributeType = "double" , defaultValue = 0.0, hidden = False, readable = True, writable = True, keyable = False)
mc.addAttr("netInvLerp0", longName = "B", attributeType = "double" , defaultValue = 0.0, hidden = False, readable = True, writable = True, keyable = False)
mc.addAttr("netInvLerp0", longName = "V", attributeType = "double" , defaultValue = 0.0, hidden = False, readable = True, writable = True, keyable = False)
mc.addAttr("netInvLerp0", longName = "zResult", attributeType = "double" , defaultValue = 0.0, hidden = False, readable = True, writable = True, keyable = False)
mc.addAttr("netLerp0", longName = "A", attributeType = "double" , defaultValue = 0.0, hidden = False, readable = True, writable = True, keyable = False)
mc.addAttr("netLerp0", longName = "B", attributeType = "double" , defaultValue = 0.0, hidden = False, readable = True, writable = True, keyable = False)
mc.addAttr("netLerp0", longName = "t", attributeType = "double" , defaultValue = 0.0, hidden = False, readable = True, writable = True, keyable = False)
mc.addAttr("netLerp0", longName = "zResult", attributeType = "double" , defaultValue = 0.0, hidden = False, readable = True, writable = True, keyable = False)

# connect attributes

mc.connectAttr(f"{nodeList[0]}.outputMatrix", f"{nodeList[2]}.matrixIn[0]") # cmx_noFlipOffset.outputMatrix -> multMatrix4.matrixIn[0]
mc.connectAttr(f"{nodeList[1]}.outputMatrix", f"{nodeList[2]}.matrixIn[1]") # cmx_testRotate.outputMatrix -> multMatrix4.matrixIn[1]
mc.connectAttr(f"{nodeList[2]}.matrixSum", f"{nodeList[7]}.inputMatrix") # multMatrix4.matrixSum -> pickMatrix1.inputMatrix
mc.connectAttr(f"{nodeList[3]}.scale", f"{nodeList[10]}.inverseScale") # jFinger0.scale -> jFinger1.inverseScale
mc.connectAttr(f"{nodeList[3]}.translate", f"{nodeList[5]}.inputTranslate") # jFinger0.translate -> composeMatrix6.inputTranslate
mc.connectAttr(f"{nodeList[3]}.parentMatrix", f"{nodeList[9]}.matrixIn[1]") # jFinger0.parentMatrix -> multMatrix3.matrixIn[1]
mc.connectAttr(f"{nodeList[3]}.worldMatrix", f"{nodeList[20]}.inMatrix1") # jFinger0.worldMatrix -> dbt_hFloor1.inMatrix1
mc.connectAttr(f"{nodeList[4]}.scale", f"{nodeList[3]}.inverseScale") # jRoot.scale -> jFinger0.inverseScale
mc.connectAttr(f"{nodeList[5]}.outputMatrix", f"{nodeList[9]}.matrixIn[0]") # composeMatrix6.outputMatrix -> multMatrix3.matrixIn[0]
mc.connectAttr(f"{nodeList[7]}.outputMatrix", f"{nodeList[8]}.offsetParentMatrix") # pickMatrix1.outputMatrix -> locNoFlipPvBase.offsetParentMatrix
mc.connectAttr(f"{nodeList[9]}.matrixSum", f"{nodeList[13]}.offsetParentMatrix") # multMatrix3.matrixSum -> jFingerIKDriver0.offsetParentMatrix
mc.connectAttr(f"{nodeList[10]}.scale", f"{nodeList[12]}.inverseScale") # jFinger1.scale -> jFinger2.inverseScale
mc.connectAttr(f"{nodeList[10]}.worldMatrix", f"{nodeList[20]}.inMatrix2") # jFinger1.worldMatrix -> dbt_hFloor1.inMatrix2
mc.connectAttr(f"{nodeList[10]}.worldMatrix", f"{nodeList[16]}.inMatrix1") # jFinger1.worldMatrix -> dbt_hFloor2.inMatrix1
mc.connectAttr(f"{nodeList[11]}.worldMatrix", f"{nodeList[16]}.inMatrix2") # jFinger3.worldMatrix -> dbt_hFloor2.inMatrix2
mc.connectAttr(f"{nodeList[12]}.scale", f"{nodeList[11]}.inverseScale") # jFinger2.scale -> jFinger3.inverseScale
mc.connectAttr(f"{nodeList[13]}.message", f"{nodeList[27]}.startJoint") # jFingerIKDriver0.message -> ikHandle6.startJoint
mc.connectAttr(f"{nodeList[13]}.parentMatrix", f"{nodeList[25]}.matrixIn[1]") # jFingerIKDriver0.parentMatrix -> multMatrix1.matrixIn[1]
mc.connectAttr(f"{nodeList[13]}.parentMatrix", f"{nodeList[2]}.matrixIn[3]") # jFingerIKDriver0.parentMatrix -> multMatrix4.matrixIn[3]
mc.connectAttr(f"{nodeList[13]}.translate", f"{nodeList[15]}.inputTranslate") # jFingerIKDriver0.translate -> composeMatrix3.inputTranslate
mc.connectAttr(f"{nodeList[13]}.scale", f"{nodeList[34]}.inverseScale") # jFingerIKDriver0.scale -> jFingerIkBase1.inverseScale
mc.connectAttr(f"{nodeList[13]}.scale", f"{nodeList[14]}.inverseScale") # jFingerIKDriver0.scale -> jFingerIKDriver1.inverseScale
mc.connectAttr(f"{nodeList[13]}.scale", f"{nodeList[15]}.inputScale") # jFingerIKDriver0.scale -> composeMatrix3.inputScale
mc.connectAttr(f"{nodeList[13]}.jointOrient", f"{nodeList[15]}.inputRotate") # jFingerIKDriver0.jointOrient -> composeMatrix3.inputRotate
mc.connectAttr(f"{nodeList[13]}.parentInverseMatrix", f"{nodeList[26]}.matrixIn[1]") # jFingerIKDriver0.parentInverseMatrix -> multMatrix2.matrixIn[1]
mc.connectAttr(f"{nodeList[14]}.message", f"{nodeList[23]}.startJoint") # jFingerIKDriver1.message -> ikHandle5.startJoint
mc.connectAttr(f"{nodeList[14]}.translate", f"{nodeList[18]}.inputTranslate") # jFingerIKDriver1.translate -> composeMatrix7.inputTranslate
mc.connectAttr(f"{nodeList[14]}.translateX", f"{nodeList[24]}.input1") # jFingerIKDriver1.translateX -> adl_finger0_PMD.input1
mc.connectAttr(f"{nodeList[14]}.scale", f"{nodeList[17]}.inverseScale") # jFingerIKDriver1.scale -> jFingerIKDriver2.inverseScale
mc.connectAttr(f"{nodeList[15]}.outputMatrix", f"{nodeList[25]}.matrixIn[0]") # composeMatrix3.outputMatrix -> multMatrix1.matrixIn[0]
mc.connectAttr(f"{nodeList[16]}.distance", f"{nodeList[28]}.A") # dbt_hFloor2.distance -> netLerp0.A
mc.connectAttr(f"{nodeList[16]}.distance", f"{nodeList[33]}.minTransXLimit") # dbt_hFloor2.distance -> jFingerIkBase2.minTransXLimit
mc.connectAttr(f"{nodeList[17]}.scale", f"{nodeList[19]}.inverseScale") # jFingerIKDriver2.scale -> jFingerIKDriver3.inverseScale
mc.connectAttr(f"{nodeList[17]}.translateX", f"{nodeList[22]}.input1") # jFingerIKDriver2.translateX -> adl_finger0_MD.input1
mc.connectAttr(f"{nodeList[19]}.translateX", f"{nodeList[22]}.input2") # jFingerIKDriver3.translateX -> adl_finger0_MD.input2
mc.connectAttr(f"{nodeList[20]}.distance", f"{nodeList[21]}.A") # dbt_hFloor1.distance -> netInvLerp0.A
mc.connectAttr(f"{nodeList[21]}.zResult", f"{nodeList[28]}.t") # netInvLerp0.zResult -> netLerp0.t
mc.connectAttr(f"{nodeList[22]}.output", f"{nodeList[28]}.B") # adl_finger0_MD.output -> netLerp0.B
mc.connectAttr(f"{nodeList[22]}.output", f"{nodeList[33]}.maxTransXLimit") # adl_finger0_MD.output -> jFingerIkBase2.maxTransXLimit
mc.connectAttr(f"{nodeList[22]}.output", f"{nodeList[24]}.input2") # adl_finger0_MD.output -> adl_finger0_PMD.input2
mc.connectAttr(f"{nodeList[24]}.output", f"{nodeList[21]}.B") # adl_finger0_PMD.output -> netInvLerp0.B
mc.connectAttr(f"{nodeList[25]}.matrixSum", f"{nodeList[30]}.inMatrix1") # multMatrix1.matrixSum -> distanceBetween2.inMatrix1
mc.connectAttr(f"{nodeList[26]}.matrixSum", f"{nodeList[31]}.primaryTargetMatrix") # multMatrix2.matrixSum -> aimMatrix1.primaryTargetMatrix
mc.connectAttr(f"{nodeList[28]}.zResult", f"{nodeList[33]}.translateX") # netLerp0.zResult -> jFingerIkBase2.translateX
mc.connectAttr(f"{nodeList[29]}.worldMatrix", f"{nodeList[23]}.offsetParentMatrix") # loc_fingerIkTarget.worldMatrix -> ikHandle5.offsetParentMatrix
mc.connectAttr(f"{nodeList[29]}.worldMatrix", f"{nodeList[27]}.offsetParentMatrix") # loc_fingerIkTarget.worldMatrix -> ikHandle6.offsetParentMatrix
mc.connectAttr(f"{nodeList[29]}.worldMatrix", f"{nodeList[30]}.inMatrix2") # loc_fingerIkTarget.worldMatrix -> distanceBetween2.inMatrix2
mc.connectAttr(f"{nodeList[29]}.worldMatrix", f"{nodeList[26]}.matrixIn[0]") # loc_fingerIkTarget.worldMatrix -> multMatrix2.matrixIn[0]
mc.connectAttr(f"{nodeList[30]}.distance", f"{nodeList[21]}.V") # distanceBetween2.distance -> netInvLerp0.V
mc.connectAttr(f"{nodeList[31]}.outputMatrix", f"{nodeList[2]}.matrixIn[2]") # aimMatrix1.outputMatrix -> multMatrix4.matrixIn[2]
mc.connectAttr(f"{nodeList[32]}.outputMatrix", f"{nodeList[31]}.secondaryTargetMatrix") # cmx_tzOne.outputMatrix -> aimMatrix1.secondaryTargetMatrix
mc.connectAttr(f"{nodeList[34]}.scale", f"{nodeList[33]}.inverseScale") # jFingerIkBase1.scale -> jFingerIkBase2.inverseScale

# scripterStu: print done

looks really daunting to type out by hand in hindsight…
