Journal: FK-IK Blending Revision…

… and preparation for autoIK.py

(part 1 of n)

TODO for scripting towards autoIK.py:

• multMatrix variant function for quickly removing forward-rotations from a section of a joint chain
  • notes on multMatrix: here
  • not sure if i should make this a utility function or just code and comment directly each time i need to do this. had a need for this multiple times in the dino rig project
• rename (and add renaming to existing functions)
• ikHandle utility function, must catch returns to hold IK handle for reparenting and nodework
• pole vector constraint utility function
  • notes on IK handles: here
• blendWeighted matrix mixer. more info here
• “matrix caching” holdMatrix utility function: for long one-time matrix multiply results that don’t need re-evaluation past creation
  • explained below
• discrete utility functions:
  • pickMatrix (for picking out or only using rotations etc)
  • composeMatrix (quickly cast transform components to matrices)
  • decomposeMatrix (quickly grab transform components from matrices)
  • inverseMatrix (invert transforms)
• selection validation functions:
  • selecting the sub-hierachy between two joints(?)

note: “forward rotations” refer to the joint.rotate attribute (the animation-facing attribute), rather than the joint.jointOrient rotation or the combined transform in the joint.matrix result

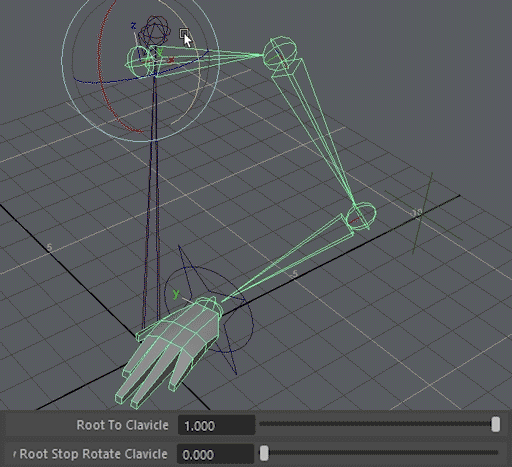

rig demo

note: second slider controls root of pole vector controller

node diagrams

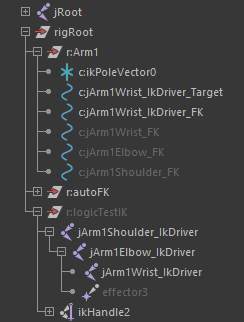

overview map

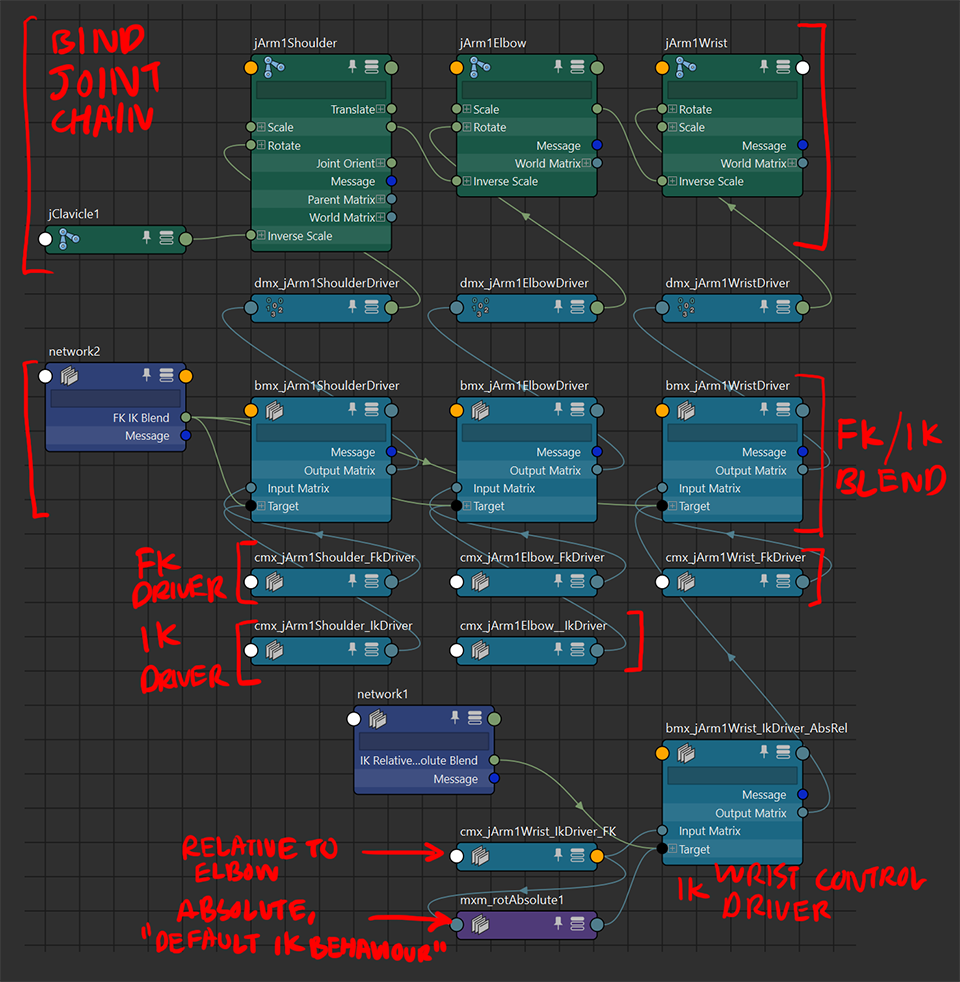

FK-IK switching map

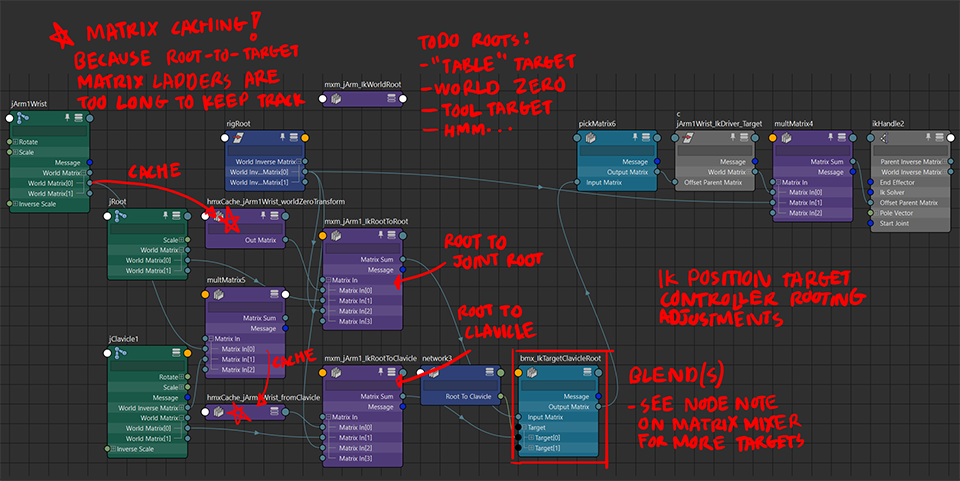

IK Target root adjustments

UPDATE: the joint.bindPose attribute already caches the initial world-forward transform of the joint relative to world zero! the attribute is updated every time a bind skin command is done with the joint, so that could be used alternatively to poll the initial zero-animation transform of the joint

on the use of “matrix caching” holdMatrix node here:

the aim of the result of this matrix value is to get the position of the wrist relative to the root of the joint chain, unmoved.

the regular way would to climb the entire chain from the root to the wrist (+1 connection per joint to the multMatrix), and remove all the forward rotations along the way (+1 composeMatrix and +1 connection per joint to the multMatrix).

(the multMatrix ladder would be 2n-1 long and contain n+1 nodes, so imagine going from root to hip to spin chain to arm chain ending at wrist.)

the shortcut, is to touch wrist.worldMatrix to a holdMatrix, with no forward rotations, and use that for the ikTargetController.offsetParentMatrix connection. this can be done either through porting over attribute values (getAttr and setAttr), or calculating the matrix cache directly in python and setting the matrix attribute (especially for caching a matrix multiply result)

this way, the initial state (zero rotations) is only calculated once, and simplifies a lot of the node network connections

the only downside is this easy solution is not dynamic, and requires a manual update if that part of the rig is to be edited after creation. a script could be used for this, and could be excuted before saving (possibly in a “bake and save” manner)

doing the regular way may make more sense when created through the script, in a run-and-forget manner. might be post-creation-editing unfriendly though from the hairy ladder standpoint

will do a note on matrix caching in the maya node notes folder at some point in the future

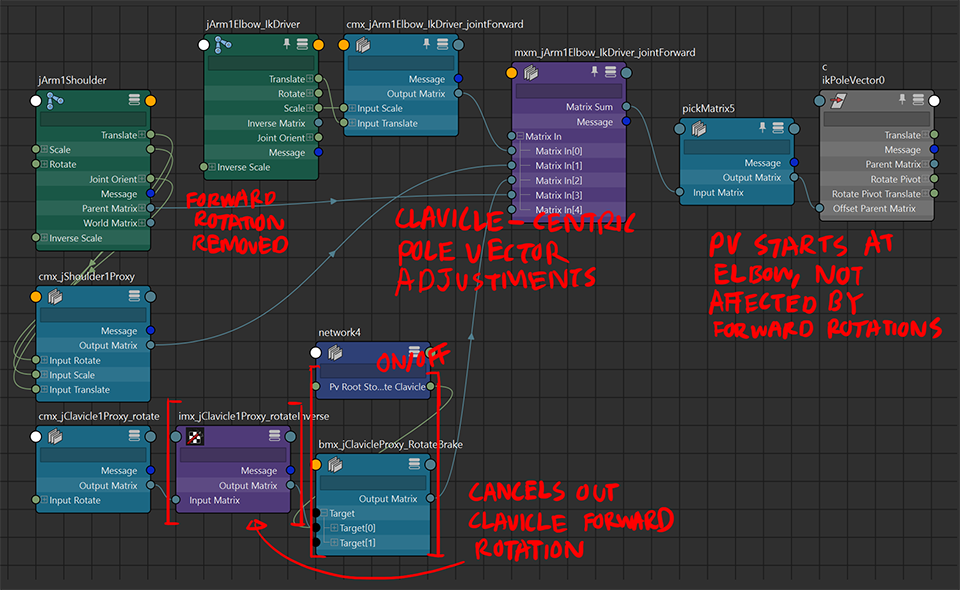

Pole Vector root adjustments

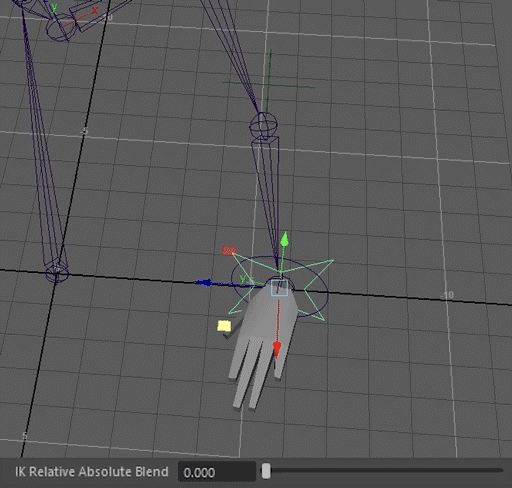

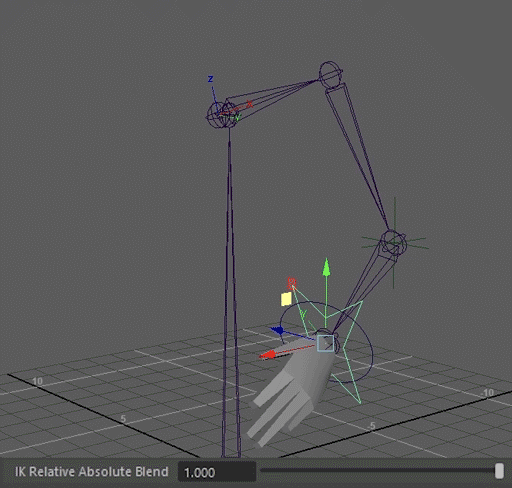

Wrist Rotation basis switch

other adjustments to add

• noflip pole vector IK
  • requires aimMatrix and a center-facing object vector
  • for the script: consider option for regular PV and noflip PV, in case there is a use for regular semi-absolute positioning
• tool-helper IK intermediary targets (works like the both-eyes aim target controller, where the two eye target controllers are under a parent controller)
  • tool targets (like that in unreal engine’s additional hand IK target joints)
  • “table” targets (like the eye control described above)
• study use case of two single-chain IKs for arm?
  • for things like leaning elbows on stuff (e.g. table, side of hip) and having the forearm articulate from there?
• curve shape switching on creation time
  • changing values to the curveShape.create attribute
• flip some IK setting blend attributes to make intuitive sense
